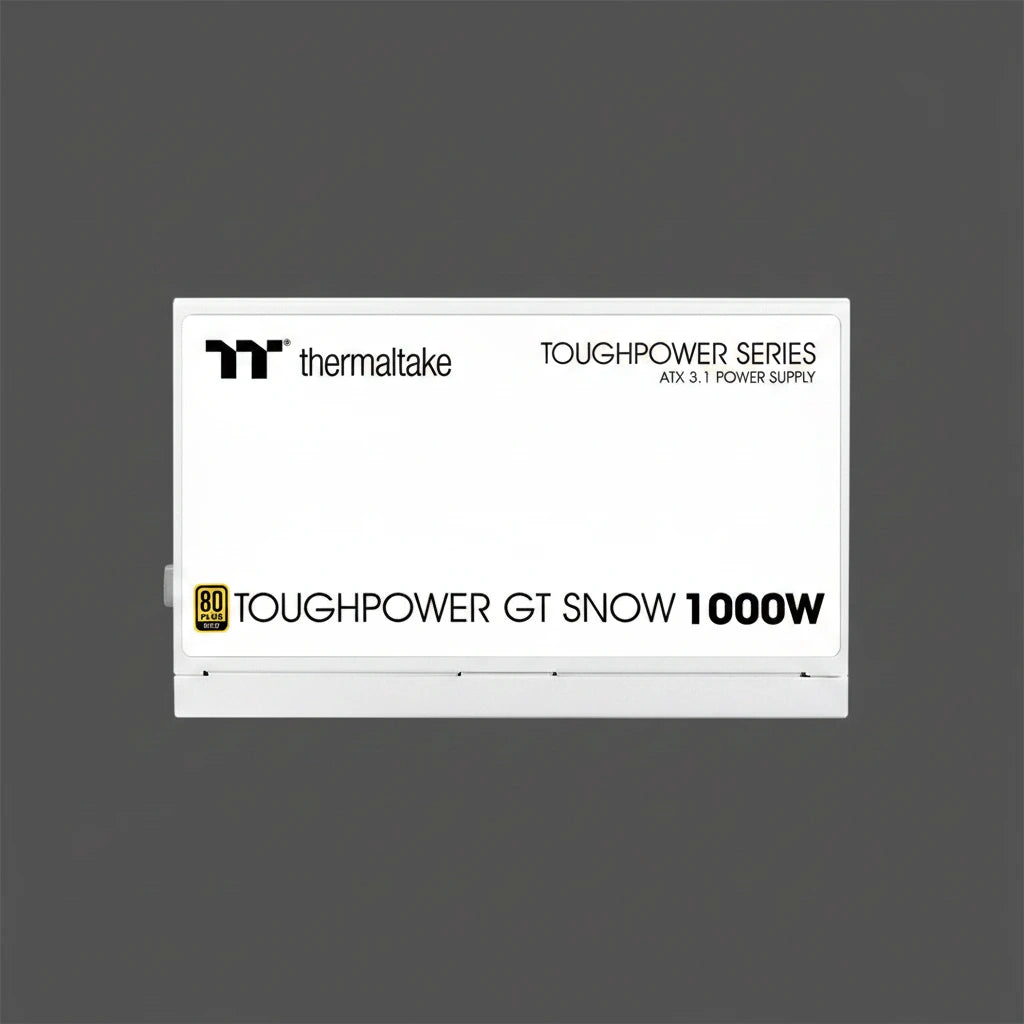

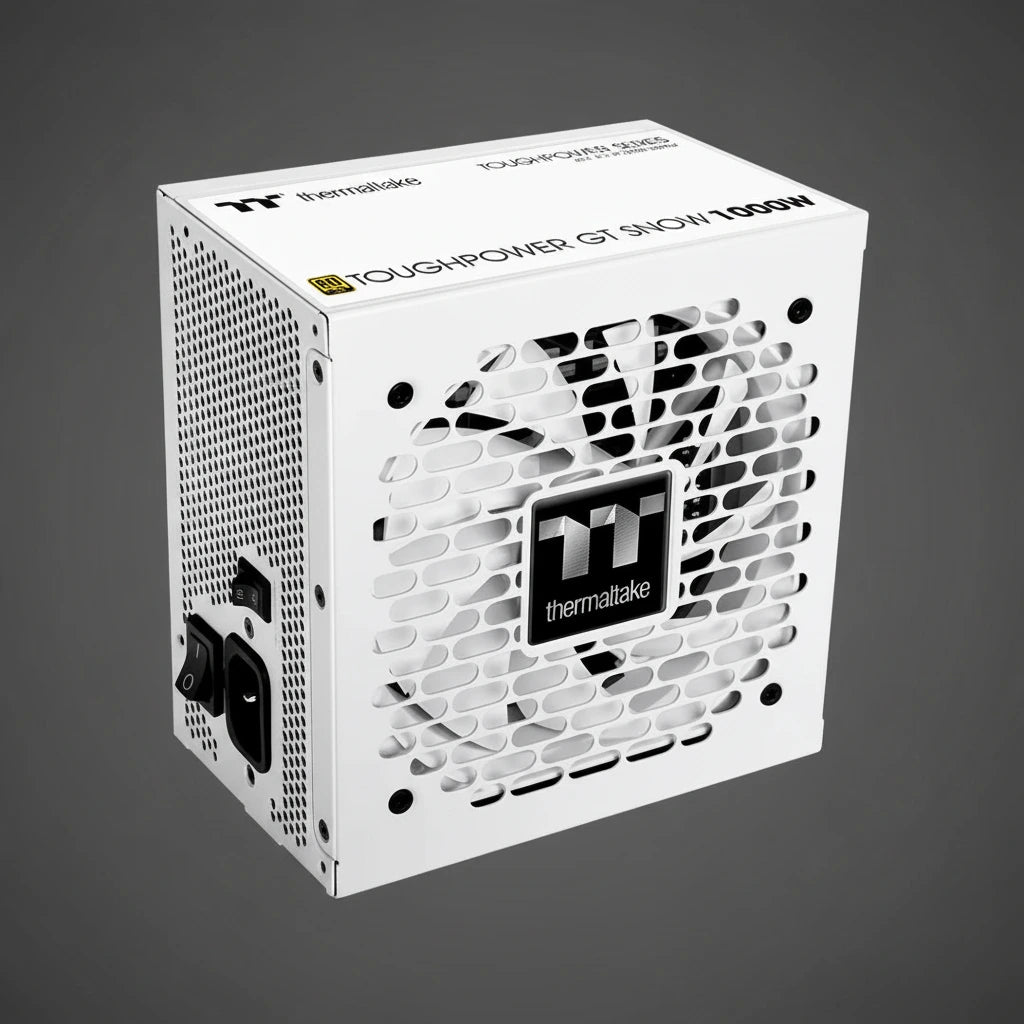

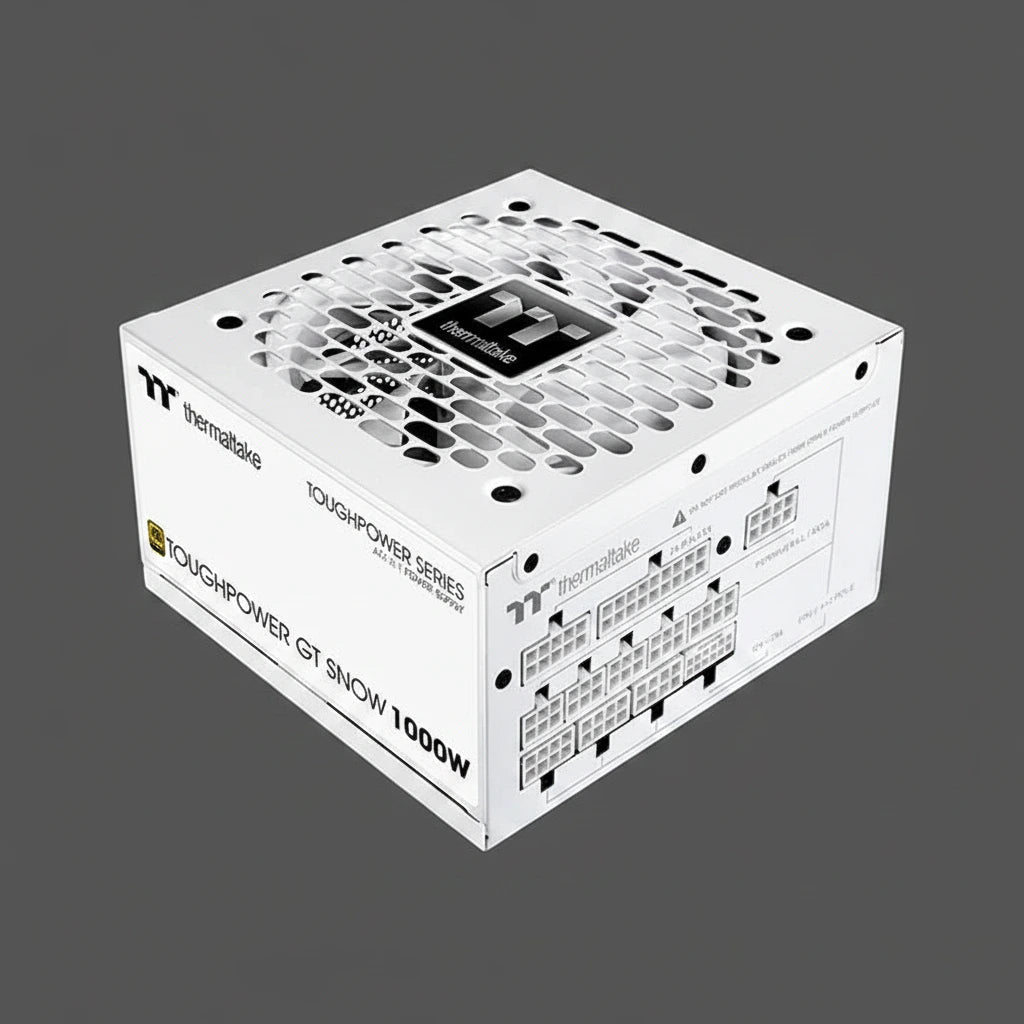

Thermaltake Toughpower GT 1000W 80+ Gold PCIe Gen 5.1 ATX 3.1 Fully Modular PSU Snow

Name: Thermaltake Toughpower GT 1000W 80+ Gold PCIe Gen 5.1 ATX 3.1 Fully Modular PSU Snow
Brand: Thermaltake
SKU: SKU:PS-TPT-1000FNFAGA-W
Price: 249.00 AUD
Availability: InStock

$249.00

Sale Sold out

Quantity

Thermaltake Toughpower GT 1000W Snow

80+ Gold • ATX 3.1 • PCIe Gen 5.1 • Fully Modular PSU

ATX 3.1 Ready

Toughpower GT Snow series is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% efficiency at low load and complies with required power supply timing standards.

PCIe Gen 5.1 Ready

Toughpower GT Snow series comes with a PCIe 12V-2x6 connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.

The wattage marked on the PCIe 12+4-pin cable connector represents the recommended wattage (Ref. Intel design guideline). The bundled PCIe Gen 5.1 (12+4pin) cable connector of the Toughpower GT Snow 1000W can deliver up to 600W for PCIe 12+4pin graphics cards.

Note:
1. Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
2. Please follow the recommended power requirements from the GPU manufactures before using the PCIe 12+4pin cable.

12+4pin Connector

Ultra Quiet 120mm Hydraulic Bearing Fan with Smart Zero Fan

Featuring an 120mm Hydraulic Bearing Fan to keep friction at really low level. Designed with our Smart Zero Fan to adjust the fan speed and minimizes undesired noise.

High Amperage Single +12V Rail & High-Class Technologies

Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.

AC INPUT	Input Voltage: 100 - 240V~ Input Current: 15-10A Frequency: 50Hz-60Hz
DC OUTPUT	+3.3V	+5V	+12V	-12V	+5VSB
Max Output Current	20A	20A	83.3A	0.3A	3A
Max Output Power	100W		999.6W	3.6W	15W
Total Power	1000W

Fully Modular Low-Profile Cables

Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat white cables make cable management easier, reduces clutter and increases airflow inside the chassis.

Connector Type	Connector Quantity	Cable Quantity	Cable Length
Main Power (24Pin)	X 1	X 1	550mm
ATX 12V (4+4Pin)	X 2	X 2	700mm
PCIe (6+2Pin)	X 5	X 1	600mm
PCIe (12+4Pin) 600W	X 5	X 2	600mm+150mm
PCIe (12+4Pin) 600W	X 1	X 1	600mm
SATA (5Pin)	X 6	X 2	450mm+150mm+150mm
Peripheral(4Pin)	X 4	X 1	400mm+150mm +150mm+150mm

Built-in Industrial Grade Protection

To protect the hardware, Toughpower GT Snow series is built with industrial grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).
