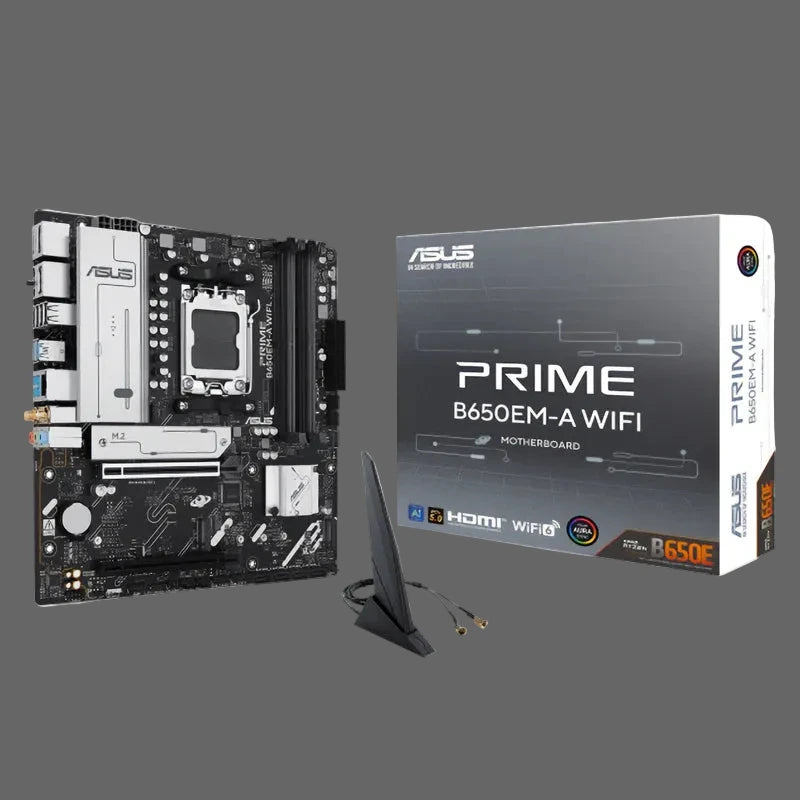

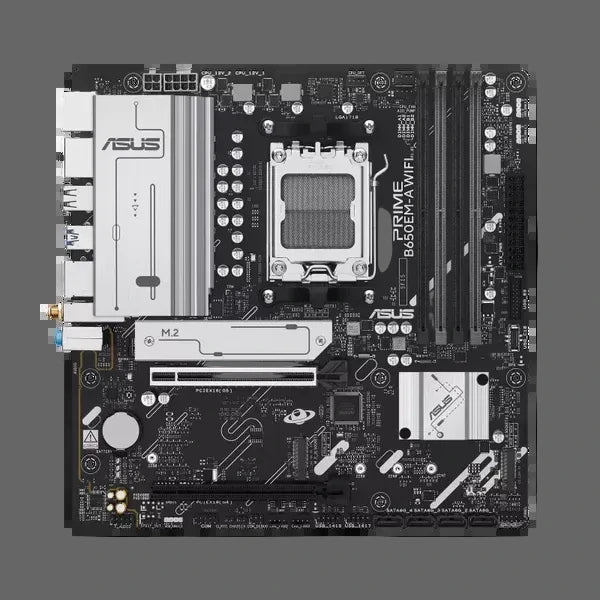

ASUS PRIME B650EM-A WIFI AM5 mATX Motherboard

Next-Gen Performance, Compact Form Factor

Build a high-performance, future-ready system without the bulk. The ASUS PRIME B650EM-A WIFI is an feature-packed micro-ATX motherboard built on the AMD AM5 socket. Ready to harness the full power of AMD Ryzen™ 9000, 8000, and 7000 Series processors, it balances an elegant, understated aesthetic with robust power delivery, comprehensive cooling management, and ultra-fast next-gen connectivity.

Whether you are assembling a powerhouse gaming rig, an AI-assisted workstation, or a reliable daily driver, this board offers the cutting-edge PCIe 5.0 bandwidth and DDR5 memory speeds required to keep your build relevant for years to come.

Key Features

  • Future-Proof Storage & Graphics: Features a standalone PCIe 5.0 x16 slot for next-gen graphics cards alongside a blazing-fast PCIe 5.0 M.2 slot for the absolute fastest boot-ups and game load times.

  • DDR5 Memory Performance: Fully supports dual-channel DDR5 memory up to 256GB with overclocking capabilities breaking past 8000+ MT/s. Includes AMD EXPO™ support for easy, stable RAM tuning.

  • High-Speed Networking: Equipped with built-in Wi-Fi 6 for seamless wireless connectivity in crowded environments and an onboard Realtek 2.5Gb Ethernet port for low-latency, high-bandwidth wired gaming and file transfers.

  • Cooler By Design: Engineered with heavy-duty VRM heatsinks and dedicated M.2 cooling. Complete configuration control is right at your fingertips using the intuitive UEFI BIOS or Fan Xpert 2+ software.

  • DIY-Friendly Setup: Features an integrated BIOS FlashBack™ button to seamlessly update your firmware using just a USB drive and a power supply—no CPU or RAM required.

Technical Specifications

Feature Specification
Form Factor Micro-ATX (24.4 cm x 24.4 cm)
Socket AMD Socket AM5
Supported CPUs AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors
Chipset AMD B650
Memory Support 4 x DIMM Slots, Max. 256GB, DDR5 (Up to 8000+ MT/s OC), Dual-Channel, AMD EXPO™ & AEMP supported
Expansion Slots

1 x PCIe 5.0 x16 slot (supports x16 mode with Ryzen 9000/7000)


1 x PCIe 4.0 x16 slot (supports x1 mode)
Storage Interfaces

Total 3 x M.2 slots & 4 x SATA 6Gb/s ports


• M.2_1: PCIe 5.0 x4 mode (Type 2280)


• M.2_2: PCIe 4.0 x4 mode (Type 2280)


• M.2_3: PCIe 4.0 x4 mode (Type 2242/2260/2280)
Wireless & Bluetooth Wi-Fi 6 (802.11ax) Dual-Band (2.4/5GHz) + Bluetooth® v5.4
Ethernet 1 x Realtek 2.5Gb Ethernet with ASUS LANGuard
Rear I/O Ports

2 x USB 10Gbps (Type-A), 2 x USB 5Gbps (Type-A), 4 x USB 2.0,


1 x HDMI™ 2.1 (4K@60Hz), 2 x DisplayPort 1.4 (8K@30Hz),


1 x Wi-Fi Module, 1 x 2.5Gb LAN, 3 x Audio Jacks, 1 x BIOS FlashBack™ Button
Internal Headers 1 x USB 5Gbps Type-C® front panel connector, 3 x Addressable Gen 2 ARGB headers, 1 x AIO Pump header, 3 x Chassis Fan headers
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
